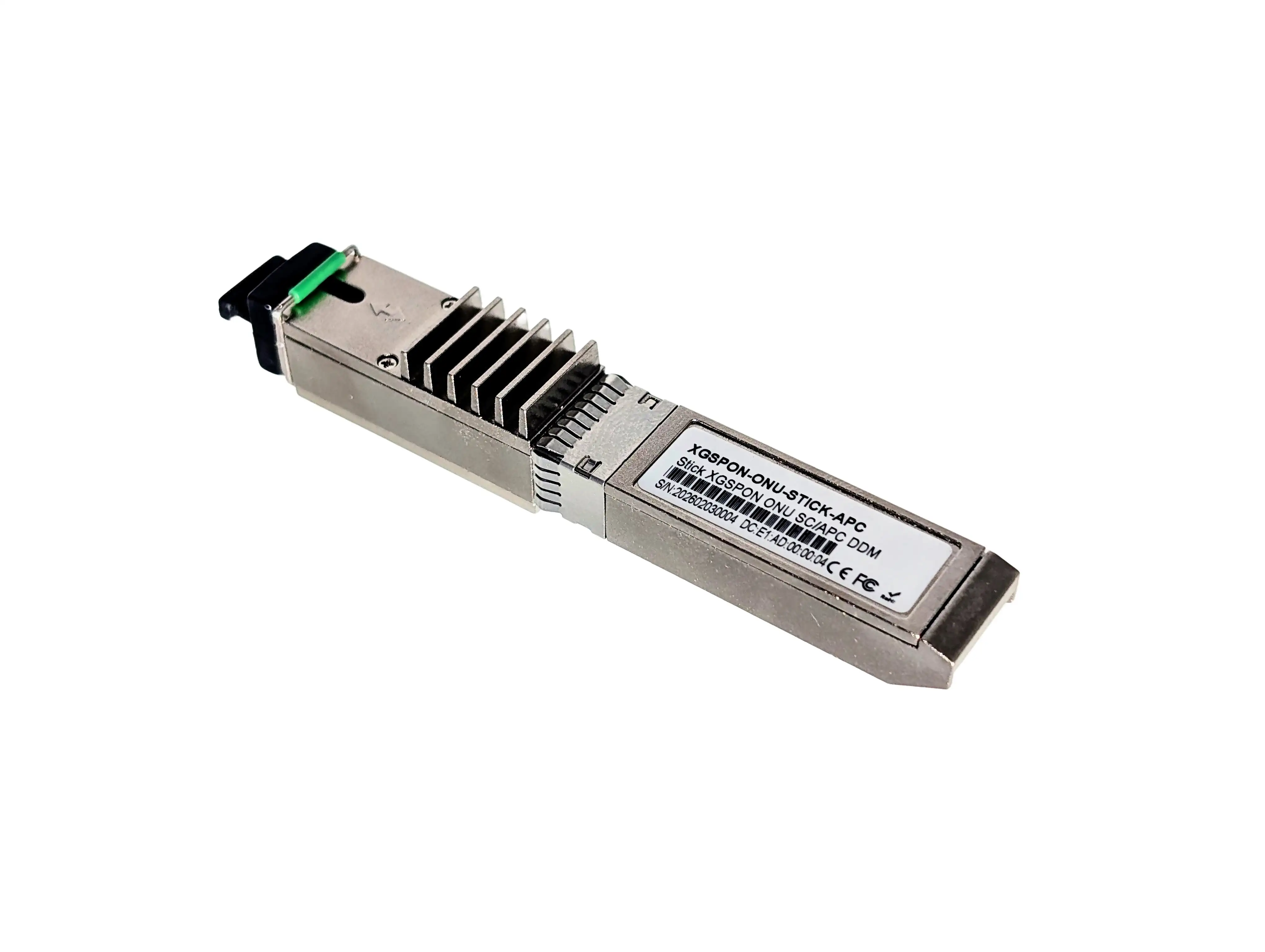

WT-ONU-STICK (WT XGSPON ONU Stick) ^{1 2}¶

Specifications¶

SoC	PRX126 @ 400 MHz - MIPS interAptiv 34Kc	Architecture
NAND	128 MB (1 Gbit)
RAM	1 GB
BOSA	SC/UPC or SC/APC - Tx: 1270 nm / Rx: 1577 nm
EEPROM
UART	UART Rx: pin 7 / Tx: pin 2 - 115200-8-1-N

OEM Firmware¶

IP	192.168.1.1
SSH

Architecture¶

MaxLinear PRX126 ²¶

%%{ init: { 'flowchart': { 'htmlLabels': false, 'curve': 'stepBefore' } } }%%
flowchart LR
  Z[" "] <-- Fiber --> A(BOSA)
  B("DRIVER/<br/>LA<br/>(PMD)")
  A --> B
  B --> A

  subgraph SOC
    C("SERDES<br/>/CDR")
    subgraph MAC
      D("10G(E)PON<br/>PCS&MAC/<br/>TC") ~~~
      E("10G-<br/>Ethernet<br/>PCS&MAC")
    end
    C <--> MAC
    F("Network<br/>Processsor<br/>/Package<br/>Switch")
    MAC <--> F
    G("10G-<br/>Ethernet<br/>PCS&<br/>MAC")
    F <--> G <--> H("SERDES<br/>/CDR")
    I("XO/PLL") ~~~
    J("Multi-Core Processor/Subsystem Controller")
  end

  B <--> C
  Y[" "]
  Y -- SFI/XFI --> H
  H --> Y
  J <-- I2C --> X[" "]

  SOC ~~~ K("Crystal 40Mhz") ~~~ L("SLC NAND Flash") ~~~ M("LPDDR3")

  classDef slateNode fill:#ffffff,stroke:#475569,stroke-width:2px,color:#1e293b
  classDef slateHighlight fill:#f1f5f9,stroke:#475569,stroke-width:2px,color:#1e293b
  classDef slateInterface fill:#334155,stroke:#1e293b,color:#ffffff,font-weight:bold
  classDef ghost fill:transparent,stroke:transparent,color:transparent

  style SOC fill:#f8fafc,stroke:#1e293b,stroke-width:2px,stroke-dasharray: 10 5
  style MAC fill:#e2e8f0,stroke:#64748b,stroke-width:2px

  class A,C,F,H,I,J,K,L,M slateNode
  class B,D,E,G slateHighlight
  class Z,Y,X ghost

Value-Added Resellers¶

Company	Product Number	E-commerce	Firmware
Banana PI	BPI-XGS-PON-ONU	AliExpress	Unknown
Purchase at your discretion, we take no responsibility or liability for the listed resellers. 8311 forks are NOT supported by the 8311 community. Ask the vendor for support or install the official 8311 community firmware.
