Masquerade as the Play SDMC NP6089XGS with the WAS-110 or X-ONU-SFPP¶

Purchase a WAS-110 or X-ONU-SFPP¶

The WAS-110 and X-ONU-SFPP are available from select resellers worldwide. To streamline the process, some resellers are pre-flashing the 8311 community firmware and highly recommended for the X-ONU-SFPP. Purchase at your discretion; we take no responsibility or liability for the listed resellers.

WAS-110 Value-Added Resellers

X-ONU-SFPP Value-Added Resellers

Requirements¶

In addition to a WAS-110 or X-ONU-SFPP, you will need:

• the PON serial number of the original SDMC gateway;
• the original gateway base MAC address and, preferably, its Internet WAN service MAC;
• a router capable of DHCP/IPoE on VLAN 35 and WAN MAC cloning;
• a way to reach the ONT management address, normally 192.168.11.1/24.

Follow the Accessing the ONT guide before continuing.

Record the subscriber-specific values¶

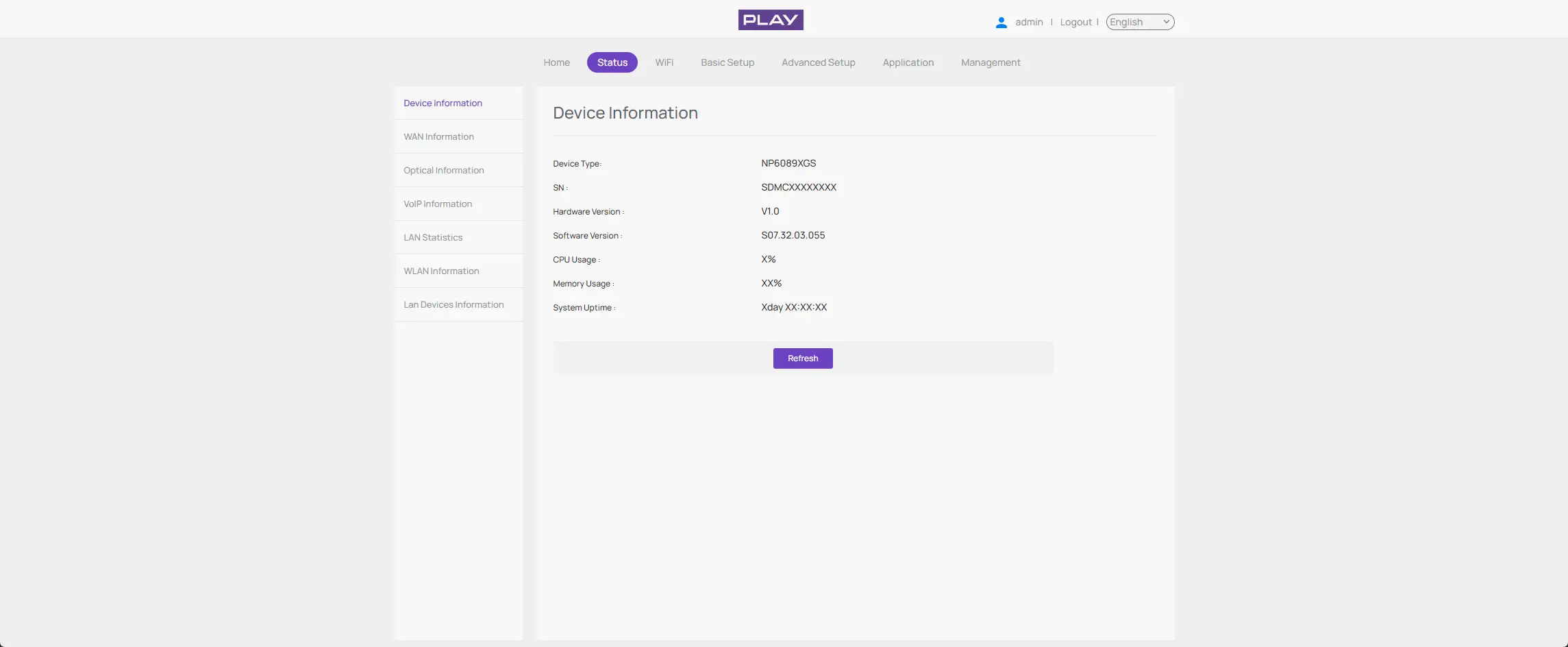

1. Within a web browser, navigate to http://192.168.0.1 and sign in to the original SDMC gateway. Then, from Status, select Device Information and record the Equipment ID (Device Type), Software Version, and GPON S/N (SN).

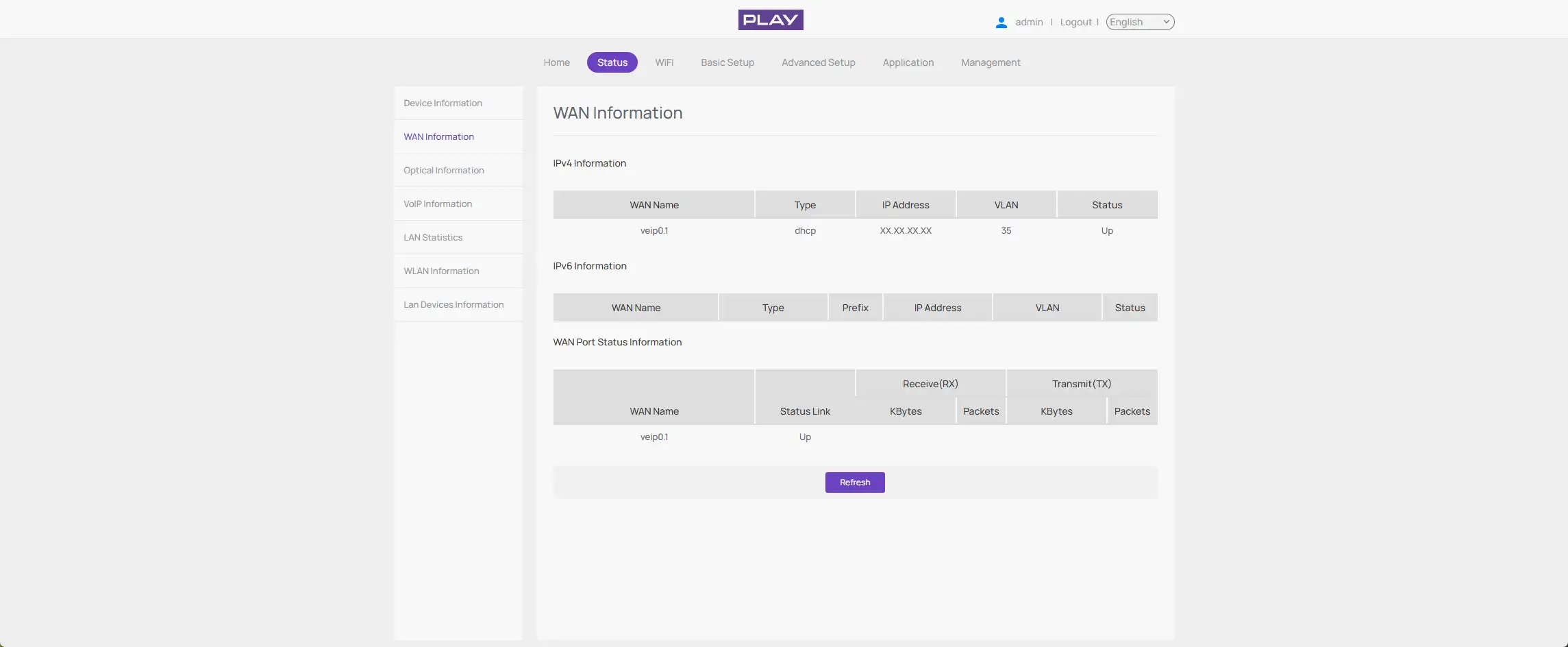

2. From Status, select WAN Information and record the VLAN ID shown in the VLAN column. Play uses VLAN 35.

PON serial number¶

Record the PON serial shown by the original SDMC web interface or label. It has the form:

SDMCXXXXXXXX

The first four characters are the vendor ID. The final eight characters are hexadecimal and must be copied exactly.

MAC addresses¶

Record the base MAC printed on the gateway label or shown in its web interface.

gponctl getState
gponctl getSnPwd
gponctl getOnuId
gponctl getAllocIds
gponctl getOmciPort

tcpdump -eni veip0.1 -s0 -vvv -c 8 'udp port 67 or 68'

Install the 8311 community firmware¶

As a prerequisite to masquerading as the SDMC NP6089XGS, the 8311 community firmware is recommended and required for the remainder of this guide. If you purchased a pre-flashed WAS-110 or X-ONU-SFPP, skip past to the masquerade setup.

Masquerade setup¶

To successfully masquerade on XGS-PON, the original ONT serial number is mandatory. It, along with other key identifiers, is available from the web UI or label of the SDMC NP6089XGS.

from the web UI recommended¶

1. Within a web browser, navigate to https://192.168.11.1/cgi-bin/luci/admin/8311/config and, if asked, input your root password.

2. From the 8311 Configuration page, on the PON tab, fill in the configuration with the following values:

   Reminder

   Replace the mandatory PON serial number, Software Versions, and IP Host MAC Address.

   Attribute	Value	Mandatory	Remarks
   PON Serial Number (ONT ID)	SDMCXXXXXXXX		Use the subscriber-specific value
   Equipment ID	NP6089XGS
   Hardware Version	NP6089-V1.1		ONU-G version
   Sync Circuit Pack Version	Disabled		Circuit Packs report HWTC
   Software Version A	S07.32.03.021		Inactive image
   Software Version B	S07.32.03.055		Active image
   Firmware Version Match	^(S07\.32\.03\.[0-9]{3})$
   Override active firmware bank	B
   Override committed firmware bank	B
   OMCC Version	0xA0
   OMCI Interoperability Mask	18		Leave at the normal default unless troubleshooting
   Registration ID (HEX)	20202020202020202020
   MIB File	/etc/mibs/prx300_1U.ini		PPTP i.e. default value
   PON Slot	1		Produces Ethernet UNI instance 0x0101
   IP Host MAC Address	<BASE-MAC>

3. From the 8311 Configuration page, on the ISP Fixes tab, disable Fix VLANs from the drop-down.

4. Save changes and reboot from the System menu.

from the shell¶

1. Login over secure shell (SSH).

   ssh root@192.168.11.1


2. Configure the 8311 U-Boot environment.

   Highlighted lines are mandatory

   Replace the mandatory PON serial number, Software Versions, and IP Host MAC Address.

   PON_SERIAL='SDMCXXXXXXXX'
   BASE_MAC='AA:BB:CC:DD:EE:FF'

   fwenv_set -8 gpon_sn "$PON_SERIAL"
   fwenv_set -8 equipment_id NP6089XGS
   fwenv_set -8 hw_ver NP6089-V1.1
   fwenv_set -8 cp_hw_ver_sync 0

   fwenv_set -8 iphost_mac "$BASE_MAC"

   fwenv_set -8 sw_verA S07.32.03.021
   fwenv_set -8 sw_verB S07.32.03.055
   fwenv_set -8 -b fw_match '^(S07\.32\.03\.[0-9]{3})$'

   fwenv_set -8 omcc_ver 0xa0
   fwenv_set -8 reg_id_hex 20202020202020202020
   fwenv_set -8 mib_file /etc/mibs/prx300_1U.ini
   fwenv_set -8 pon_slot 1
   fwenv_set -8 fix_vlans 0


3. Verify the 8311 U-Boot environment and reboot.

   fw_printenv | grep '^8311_'
   reboot


Verify OLT provisioning¶

After rebooting the WAS-110 or X-ONU-SFPP, safely remove the SC/APC cable from the SDMC gateway and connect it to the replacement ONT.

Check PLOAM status¶

Open the 8311 overview page and confirm:

PON PLOAM Status: O5.1, Associated state

Check the cloned OMCI identity¶

From SSH:

omci_pipe.sh meg 256 0
omci_pipe.sh meg 257 0
omci_pipe.sh meg 7 0
omci_pipe.sh meg 7 1
omci_pipe.sh meg 11 257

Expected highlights:

ONU-G vendor:                 SDMC
ONU-G version:                NP6089-V1.1
ONU2-G equipment ID:          NP6089XGS
ONU2-G OMCC version:          0xa0
Software image 0:             S07.32.03.021, valid only
Software image 1:             S07.32.03.055, active + committed + valid
PPTP Ethernet UNI instance:   257 / 0x0101

Configure the router WAN¶

Configure the router connected to the replacement ONT as follows:

Connection type: DHCP / IPoE
WAN VLAN:        35
WAN MAC clone:   <WAN-MAC> (base + 1)

The IP Host MAC Address configured on the 8311 does not clone the router's Ethernet MAC. The router must apply its own WAN MAC clone.

Suppress DHCP Option 61¶

DHCP Option 61 must be removed from DHCP requests to receive an ACK from the Play DHCP server.

git clone https://github.com/rxri/ubiquiti-dhcp-clientid-removal.git /data/dhcp-clientid-removal
cd /data/dhcp-clientid-removal
chmod 755 dhcp-clientid-removal.sh udhcpc-wrapper.sh
sudo ./dhcp-clientid-removal.sh install

/data/local/etc/dhcp-clientid-removal.conf

TARGET_INTERFACE="eth6.35"

cd /data/dhcp-clientid-removal
git pull --ff-only
sudo ./dhcp-clientid-removal.sh install

tcpdump -eni <WAN-VLAN-INTERFACE> -s0 -vvv 'udp and (port 67 or 68)'

Discover -> Offer -> Request -> ACK

/ip dhcp-client set [find where interface="<WAN-INTERFACE>"] dhcp-options=hostname
/ip dhcp-client renew [find where interface="<WAN-INTERFACE>"]

Troubleshooting¶

For general optical, PLOAM, and OMCI diagnostics, follow the Troubleshoot connectivity issues with the WAS-110 or X-ONU-SFPP guide.
